Digital Refractometer for Brix Analysis
Digital Refractometer for Brix Analysis

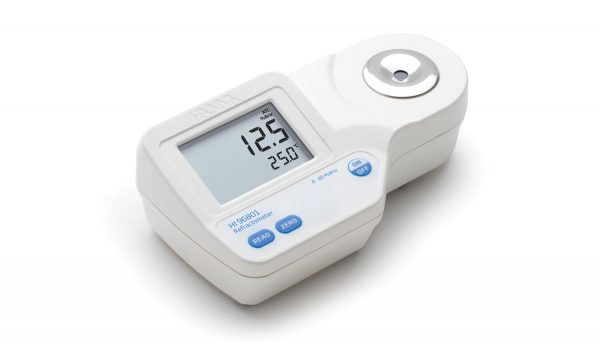

The HI96801 is a rugged, portable digital refractometer for food products designed to report the sugar content of aqueous solutions as % Brix. The HI96801 report the results with an accuracy of ±0.2% Brix. The operation of the meter is simplified with only two buttons: one button is to calibrate with distilled or deionized water and the other to take a measurement. All readings are automatically compensated for temperature variations according to the ICUMSA Methods Book standard and displayed within a 1.5 second response time. The sealed flint glass prism and stainless steel well are easy to clean. Just wipe with a soft cloth in preparation for the next sample.
Features at-a-glance :
- One-point calibration
- Calibrate with distilled or deionized water
- Small sample size
- Sample size can be as small as 2 metric drops (100 μl)
- Automatic Temperature Compensation (ATC)
- Samples automatically compensated for temperature variations
- Quick, accurate results
- Readings are displayed in approximately 1.5 seconds
- Dual-level LCD
- The dual-level LCD displays measurement and temperature readings simultaneously
- Stainless steel sample well
- Easy to clean and corrosion-resistant
- Battery indicators
- Battery percent level remaining at startup and low battery indicator
- Automatic shut-off
- To conserve battery life the meter shuts off automatically after three minutes of non-use
- Stainless steel sample well
- Easy to clean and corrosion-resistant
- IP65 water resistant protection
- Water resistant ABS plastic casing designed to perform under laboratory and field conditions.
|
Sugar Content Range |
0 to 85% Brix |
|
Sugar Content Resolution |
0.1% Brix |
|
Sugar Content Accuracy |
±0.2% Brix |
|
Temperature Range |
0 to 80°C (32 to 176°F) |
|
Temperature Resolution |
0.1°C (0.1°F) |
|
Temperature Accuracy |
±0.3 °C (±0.5 °F) |
|
Temperature Compensation |
automatic between 10 and 40°C (50 to 104°F) |
|
|
|
|
Automatic Shut-Off |
after three minutes of inactivity |
|
Battery Type/Life |
9V / approximately 5000 readings |
|
Dimensions |
192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) |
|
Weight |
420 g (14.8 oz.) |
|
Refractometer Light Source |
yellow LED |
|
Minimum Sample Volume |
100 μL (to cover prism totally) |
|
Sample Cell |
stainless steel ring and flint glass prism |
|
Measurement Time |
approximately 1.5 seconds |
|
Ordering Information |
HI96801 is supplied with battery and instruction manual |
|
Notes |
Enclosure Rating: IP65 |
In stock
Description
Digital Refractometer for Brix Analysis
The HI96801 is a rugged, portable digital refractometer for food products designed to report the sugar content of aqueous solutions as % Brix. The HI96801 report the results with an accuracy of ±0.2% Brix. The operation of the meter is simplified with only two buttons: one button is to calibrate with distilled or deionized water and the other to take a measurement. All readings are automatically compensated for temperature variations according to the ICUMSA Methods Book standard and displayed within a 1.5 second response time. The sealed flint glass prism and stainless steel well are easy to clean. Just wipe with a soft cloth in preparation for the next sample.
Features at-a-glance :
- One-point calibration
- Calibrate with distilled or deionized water
- Small sample size
- Sample size can be as small as 2 metric drops (100 μl)
- Automatic Temperature Compensation (ATC)
- Samples automatically compensated for temperature variations
- Quick, accurate results
- Readings are displayed in approximately 1.5 seconds
- Dual-level LCD
- The dual-level LCD displays measurement and temperature readings simultaneously
- Stainless steel sample well
- Easy to clean and corrosion-resistant
- Battery indicators
- Battery percent level remaining at startup and low battery indicator
- Automatic shut-off
- To conserve battery life the meter shuts off automatically after three minutes of non-use
- Stainless steel sample well
- Easy to clean and corrosion-resistant
- IP65 water resistant protection
- Water resistant ABS plastic casing designed to perform under laboratory and field conditions.
|
Sugar Content Range |
0 to 85% Brix |
|
Sugar Content Resolution |
0.1% Brix |
|
Sugar Content Accuracy |
±0.2% Brix |
|
Temperature Range |
0 to 80°C (32 to 176°F) |
|
Temperature Resolution |
0.1°C (0.1°F) |
|
Temperature Accuracy |
±0.3 °C (±0.5 °F) |
|
Temperature Compensation |
automatic between 10 and 40°C (50 to 104°F) |
|
|
|
|
Automatic Shut-Off |
after three minutes of inactivity |
|
Battery Type/Life |
9V / approximately 5000 readings |
|
Dimensions |
192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) |
|
Weight |
420 g (14.8 oz.) |
|
Refractometer Light Source |
yellow LED |
|
Minimum Sample Volume |
100 μL (to cover prism totally) |
|
Sample Cell |
stainless steel ring and flint glass prism |
|
Measurement Time |
approximately 1.5 seconds |
|
Ordering Information |
HI96801 is supplied with battery and instruction manual |
|
Notes |
Enclosure Rating: IP65 |
